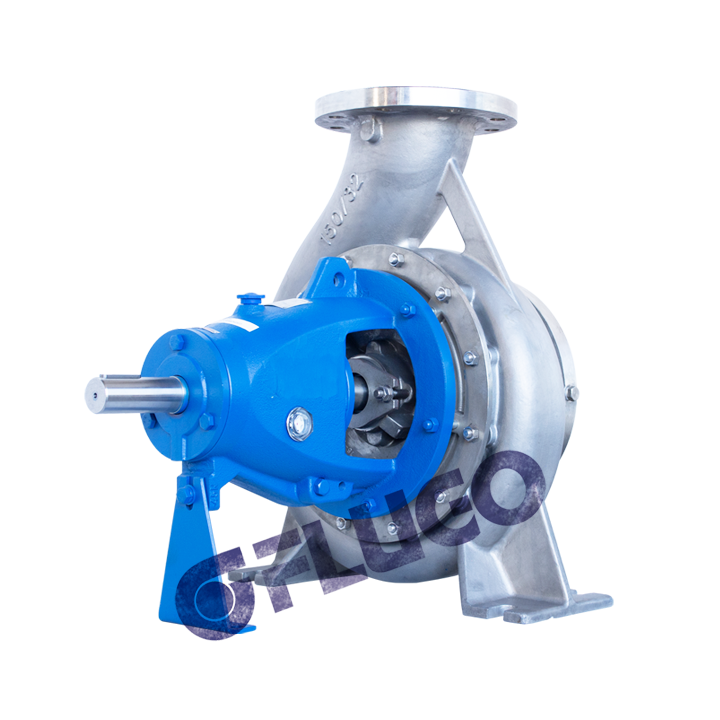

FA Series SS316 - Centrifugal Pump
FA SS316 series pump has just one impeller, pump and motor is connecting by coupling. It gives your advantages for easy disassembling.
Product Info & Specification
Design Features & Applications
Performance Curve 1450 rpm
Performance Curve 2900 rpm
Maintenance
FA series pump has just one impeller, pump and motor is connecting by coupling.
It gives your advantages for easy disassembling.
Specification
Type : FA
Standard : DIN24255
Discharge Flange : DN32-DN350
Capacity : 1500 m³/h
Head : 140m
Temperature of Pumped Liquid : +105 °C
Maximum Operating Pressure : 10 Bar (16 Bar)*
Frequency : Single/Three-phase 50 Hz - 60 Hz
Pump Speed : 1000 ~ 3600 RPM
Viscosity : 0~300 cps
Fluid : Clean Water / Oil
Impeller Type : Close
Casing & Covers : Cast Iron / Bronze / SS316 / SS329
Impeller : Cast Iron / Bronze / SS316 / SS329
Shaft : SS420 / SS304 / SS316 / SS329
Seal : Packing Seal / Mechanical Seal
Suction / Discharge Flange : PN16
